Introduction

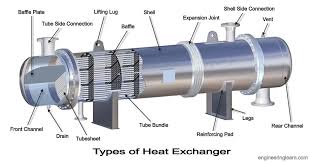

Baffles are integral components in shell-and-tube heat exchangers, serving as strategic flow directors that enhance thermal performance and durability. By guiding the fluid through a defined path, baffles increase turbulence, allowing for more effective heat transfer between the fluid in the shell and the tubes. Beyond just boosting thermal efficiency, baffles also play an essential role in supporting the structural stability of the exchanger, reducing vibrations, preventing tube sagging, and enhancing overall reliability. In various industries, from power generation to chemical processing, a well-designed baffle system can make a significant difference in operational efficiency, energy costs, and maintenance needs. This article explores the vital role of baffle design, examining how the spacing, type, and arrangement of baffles contribute to optimizing heat exchanger performance and lifespan.
Enhancing Heat Transfer
- Baffles force the fluid to flow in a zigzag or crossflow pattern across the tubes rather than flowing directly from inlet to outlet. This promotes turbulence, which disrupts the boundary layer around the tubes and increases the rate of heat transfer. The more turbulence created, the better the thermal performance of the exchanger.
Controlling Fluid Velocity and Pressure Drop
- Baffles help control the velocity of fluid flow through the shell, which directly impacts the pressure drop within the exchanger. Higher fluid velocity enhances heat transfer but also leads to a greater pressure drop. An optimal baffle design balances these factors to achieve efficient heat transfer without excessive energy consumption or strain on the exchanger components.
Supporting Tubes and Preventing Vibration
- Baffles provide structural support to the tubes within the shell, preventing tube sagging and vibration. Without proper baffle spacing and placement, tubes can experience vibrations due to the fluid flow, leading to wear, mechanical failure, and leaks. Thus, baffles enhance the durability and reliability of the exchanger.
Baffle Types and Their Impact
- Various types of baffles, such as segmental, helical, and disk-and-doughnut baffles, influence heat exchanger performance differently. For example:
- Segmental Baffles: Most common, creating crossflow over tubes, maximizing turbulence and enhancing heat transfer.
- Helical Baffles: Induce a swirling flow, reducing dead zones and offering a lower pressure drop, ideal for applications needing smoother flow.
- Disk-and-Doughnut Baffles: Used in high-pressure applications for an even distribution of flow across tube bundles.
Baffle Spacing and Its Importance
- The spacing between baffles significantly affects the heat exchanger’s performance. Closer baffle spacing increases turbulence and heat transfer but may lead to a higher pressure drop. Wide baffle spacing reduces pressure drop but may result in lower heat transfer efficiency. The optimal spacing depends on the specific requirements of the application, balancing thermal performance with operational efficiency.
Design Considerations for Different Applications
- The application’s operating temperature, pressure, and fluid properties influence the ideal baffle design. For instance, in applications with viscous fluids, wider spacing may be beneficial to prevent clogging, while high-pressure systems may require stronger support from denser baffle placement.
Minimizing Dead Zones
- Proper baffle design helps minimize dead zones, or areas with stagnant flow, which can reduce overall efficiency. Dead zones limit the heat transfer surface in contact with the fluid, lowering the exchanger’s performance. Helical and other optimized baffle configurations are designed to keep fluid continuously moving, eliminating dead zones and enhancing the heat transfer rate.
Improving Fouling Resistance
- Baffles also play a role in reducing fouling by maintaining fluid turbulence. Fouling, the buildup of deposits on heat exchanger surfaces, reduces heat transfer efficiency and requires frequent maintenance. Baffles encourage a consistent flow pattern that helps prevent deposits from forming on tube surfaces, improving long-term efficiency and reducing maintenance needs.
Optimizing Flow Distribution
- By forcing the fluid to move across all tubes in the bundle, baffles ensure even flow distribution. Uneven flow can cause some tubes to overheat or underperform, which not only affects efficiency but can also lead to thermal stress and early component failure. Proper baffle design guarantees balanced flow, ensuring that all tubes operate within ideal temperature ranges.
Reducing Fluid Bypass
- Fluid bypass, where fluid flows around rather than through the tube bundle, can significantly reduce efficiency. Well-designed baffles minimize bypass by guiding the fluid through the tube bundle as much as possible. This ensures maximum fluid contact with heat transfer surfaces and increases thermal exchange efficiency.
Thermal Expansion Accommodation
- Baffle designs must also consider the effects of thermal expansion. Changes in temperature can cause materials to expand or contract, potentially stressing components. Baffles that allow for thermal expansion without compromising structural integrity improve the exchanger’s durability, particularly in high-temperature applications.
Tailoring for Different Fluids
- Baffle configurations can be customized based on the type of fluids used in the heat exchanger. For instance, gas flows generally require closer baffle spacing than liquids to create sufficient turbulence due to lower fluid density. Liquids, especially those with higher viscosities, might benefit from wider baffle spacing to reduce pressure drop.
Enhanced Structural Integrity for High-Pressure Systems
- In high-pressure systems, baffles provide critical structural support to withstand intense operating conditions. High-pressure fluid can exert significant force on tubes, which baffles help counteract by providing support and stabilizing the entire tube bundle. This is especially valuable in applications such as chemical processing and oil & gas industries.
Heat Transfer Customization with Multi-Pass Design
- Multi-pass baffle designs allow for different flow paths within the exchanger, offering flexibility for complex applications. Baffles can be arranged to create multiple passes, allowing the same fluid to pass through the heat exchanger several times for improved heat transfer in applications where a single pass might not achieve desired temperatures.
Conclusion
The role of baffles in heat exchangers extends far beyond simply directing fluid flow; they significantly impact efficiency, durability, and operational costs. A well-designed baffle system provides structural support, minimizes fouling, reduces dead zones, and optimizes flow paths, ensuring that the heat exchanger operates at peak performance. Careful consideration of baffle type, spacing, and materials is crucial for industries that rely on heat exchangers, helping them achieve optimal heat transfer, reduce maintenance, and improve the overall lifespan of the equipment.
