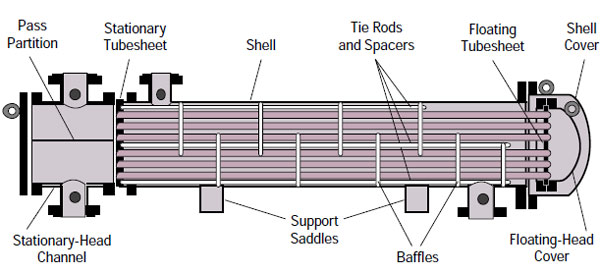

Removable Tube Bundle Exchanger is also called Floating-Head Exchanger
In a floating-head exchanger, the tube part is free to move within the system. It is a type of shell and tube heat exchanger that is typically used for high-pressure applications. This type of exchanger is more efficient than both fixed-tube sheets and U-tube exchangers, and it is also more expensive to operate. In addition, the floating-head exchanger requires more maintenance than the other two types of exchangers.

• General industrial applications requiring frequent cleaning
• Chemical processing applications for toxic fluids
• Hydrocarbon fluid condensers
• Special gas aftercoolers and intercoolers
• Air pollution control systems
• Secondary heat recovery solutions for returning heat to ovens, dryers, kilns
• Building heating
• OEM energy recovery applications

• Tube bundle can be pulled out to facilitate cleaning of the tube side and shell side.
• Temperature difference between two mediums is not limited.
• The heat exchanger can operate under high temperature and pressure (average temperature ≤ 450°C, pressure ≤ 6.4 MPa).
• Suitable for serious scaling occasions.
• Suitable for easy corrosion occasions.
• No temperature limit between the two mediums.
• Easy to clean and inspect.
• High reliability and wide adaptability.
• Suitable for dirty fluid applications due to ease of cleaning.
• The tube bundle can be removed for inspection.
• Possible mechanical cleaning of the outer surface of tubes.
• Straight tubes allow individual tube replacement.
• Tube and shell expansion is not a problem.
• The inside tube surface can be cleaned without removing the tube bundle.
• No limitation on the number of tube side passes.
